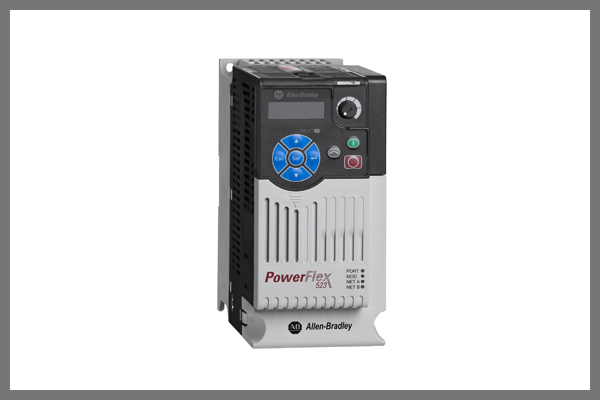

ALLEN BRADLEY - PF523 (POWER FLEX PF523)

Catalog Number Description
25A-A011N114 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
22F-A011N113 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-A1P6N104 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A1P6N114 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A2P5N104 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A2P5N114 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A4P8N104 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A4P8N114 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A8P0N104 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-A8P0N114 PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-B011N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B017N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-B024N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-B032N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-B048N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-B062N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-B1P6N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B2P5N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B5P0N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B8P0N104 PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D010N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-D010N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-D013N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-D013N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25A-D017N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-D017N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25A-D024N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-D024N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25A-D030N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-D030N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25A-D037N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25A-D043N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25A-D1P4N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D1P4N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D2P3N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D2P3N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D4P0N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D4P0N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D6P0N104 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D6P0N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-E012N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-E019N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-E022N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-E027N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-E032N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-E0P9N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E1P7N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E3P0N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E4P2N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E6P6N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-E9P9N104 PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-V1P6N104 PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-V2P5N104 PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-V4P8N104 PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-V6P0N104 PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
