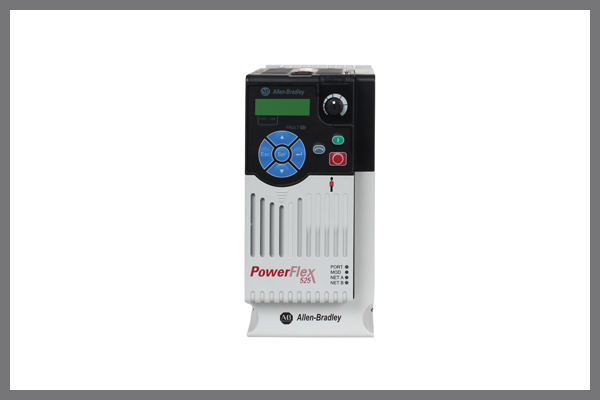

ALLEN BRADLEY - PF525 (POWER FLEX PF525)

Catalog Number Description
25B-A011N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A011N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-A2P5N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A2P5N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A4P8N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A4P8N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A8P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A8P0N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-B011N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B017N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-B024N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-B032N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-B048N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B062N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B2P5N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B5P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B8P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D010N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-D010N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-D013N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D013N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D017N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D017N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D024N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D024N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D030N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D030N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D037N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D043N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D1P4N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D1P4N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D2P3N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D2P3N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D4P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D4P0N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D6P0N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-E012N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-E019N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E022N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E027N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E032N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E0P9N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E1P7N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E3P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E4P2N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E6P6N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-E9P9N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-V2P5N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-V4P8N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-V6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
